JL Audio 13TW5V2-2 TW5v2 Series 13.5" 600W RMS (1200W Peak Power Handling) 2 Ohms, Shallow Mount Component Car Subwoofer
We are a JL Audio authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
Why Choose JL Audio 13TW5V2-2 Component Car Subwoofer?
Big Output in Ultra-Compact Spaces
Engineered for big sound from a small enclosure, this woofer is optimized to deliver exceptional performance in extremely compact spaces—requiring less airspace than many conventional 12" subs and only slightly more than a typical small-box 10". Its patented concentric tube structure supports a massive 7" diameter voice coil, enabling outstanding power handling, thermal stability, and precise cone control despite its shallow mounting depth. A mica-filled polypropylene cone with a durable Santoprene surround ensures strong, consistent bass output with minimal distortion, even at high excursion.
Precision Bass in a Compact Design
JL Audio’s 13.5" woofer features Dynamic Motor Analysis (DMA) technology for long, linear cone travel with minimal distortion, delivering tight, clean, and articulate bass, while its cast-alloy, tab-ear frame provides strength and a space-saving design that fits nearly the same footprint as most standard 12" subs.
Versatile Bass for Tight Spaces
This subwoofer delivers full, accurate bass in sealed or ported enclosures, handling 250–600 watts RMS, while its ultra-thin 2-5/8" mounting depth allows installation in trucks, sports cars, and other tight spaces where traditional woofers won’t fit.
Frequently Asked Questions (FAQ)
- • Will it fit in a shallow enclosure?
Yes, the 13TW5V2-2 is designed for shallow-mount installations while still delivering powerful low-frequency output. Be sure to use an enclosure that matches JL Audio's recommended specifications for the best performance.
- • Why doesn't my JL Audio 13TW5V2-2 hit as hard as I expected?
Weak bass is often caused by an enclosure with the wrong internal volume, incorrect crossover settings, or insufficient amplifier power. Proper tuning and enclosure design will significantly improve bass performance.
- • What size amplifier should I use with it?
Choose an amplifier that delivers clean power within JL Audio's recommended RMS power range. A properly matched amplifier will maximize output while helping protect the subwoofer from damage.
- • Why does it sound distorted at high volume?
Distortion is commonly caused by amplifier clipping, excessive bass boost, or incorrect gain settings. Reducing the gain and using clean amplifier power will improve sound quality.
- • Can I install it in a sealed enclosure?
Yes, the subwoofer performs exceptionally well in a properly designed sealed enclosure. Following JL Audio's enclosure recommendations will ensure the best balance of output and sound quality.
- • Why does my amplifier keep shutting off when playing the JL Audio 13TW5V2-2?
This usually happens because of incorrect speaker wiring, overheating, or poor power and ground connections. Verify the amplifier's supported impedance and inspect all electrical connections.
- • Can I use it with my factory stereo?
Yes, but you'll need an external amplifier and the proper signal integration if you're keeping the factory head unit. The factory radio alone cannot provide enough power to operate the subwoofer properly.
- • Why is it so important to secure the enclosure firmly to the vehicle?
An improperly secured enclosure can become a dangerous projectile during a sudden stop or collision. Furthermore, a loose box will vibrate, which significantly degrades your bass accuracy and overall sound fidelity.
- • Can I install two JL Audio 13TW5V2-2 subwoofers in one system?
Yes, dual 13TW5V2-2 subwoofers can provide significantly more bass output when paired with a compatible amplifier. Make sure the amplifier can safely handle the final speaker impedance.
- • How do I keep my JL Audio 13TW5V2-2 performing like new?
Inspect the enclosure, amplifier settings, and wiring regularly to ensure everything remains secure and properly adjusted. Avoid overpowering the subwoofer and protect it from moisture and physical damage for maximum lifespan.
Learn how to wire subwoofers
- Diameter : 13.5 Inch
- Sensitivity : 85.51 dB
- Impedance : 2 Ohm
- Frequency Response : 20-200 Hz
- Peak Power Handling : 1200 Watts
- Shallow Mount : Yes Inch
- Number of Voice Coils : Single
- Suggested Sealed Box Volume : 0.8 Cubic ft.
- Mounting Depth : 2.63 Inches
- RMS Power Handling : 600 Watts
Features:
- Engineered for Big Sound from a Small Enclosure: Optimized for extremely compact enclosures—requiring less airspace than many traditional 12" woofers and only slightly more than a typical 10" small-box sub.
- Huge 7-Inch Diameter Voice Coil: Patented concentric tube structure supports an oversized 7" voice coil, maximizing power handling, thermal stability, and cone control within a shallow mounting depth.
- Polypropylene Cone Technology: Durable, mica-filled polypropylene cone paired with a resilient Santoprene™ rubber surround provides strong, consistent bass output with low distortion even at high excursion.
- Dynamic Motor Analysis (DMA) Optimized Design: JL Audio’s proprietary modeling ensures long, linear cone travel with minimal distortion, producing tight, clean, and articulate bass at all power levels.

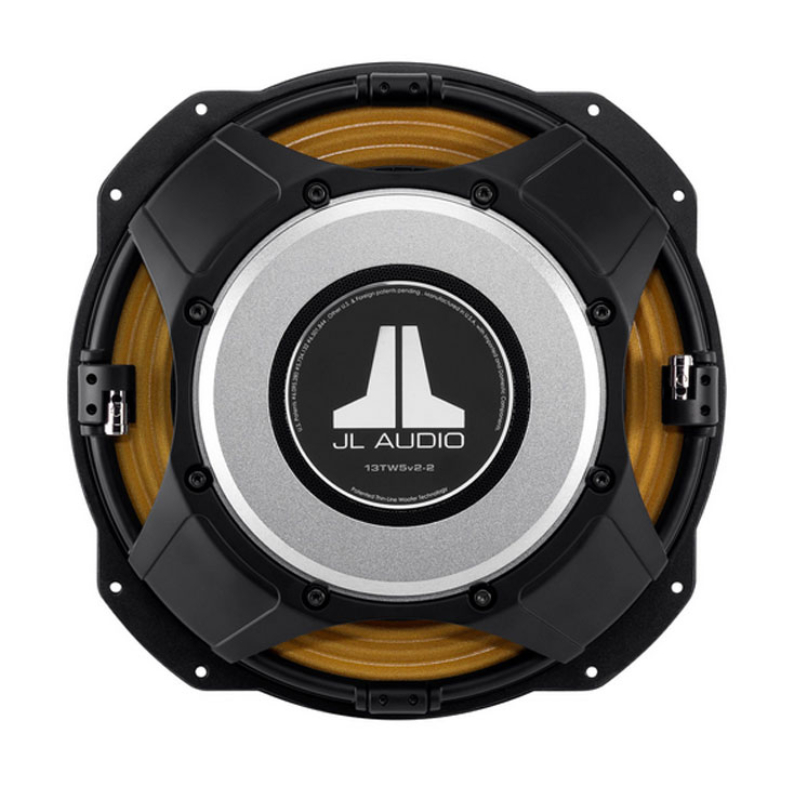

- Space-Saving Frame Design: Cast-alloy frame engineered for strength and compactness; the tab-ear mounting design allows this 13.5" woofer to fit in nearly the same footprint as most standard 12" subs.
- Powerfully Adaptable: Performs exceptionally in sealed or ported enclosures and pairs well with amplifiers delivering 250–600 watts RMS for full, accurate bass in a variety of vehicles and installation constraints.

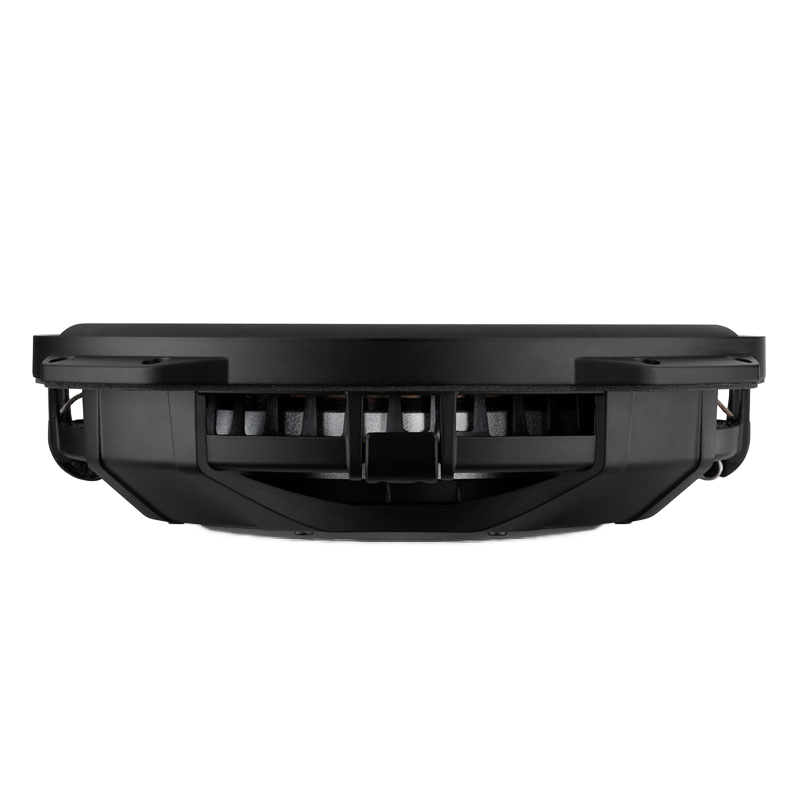

- Super-Thin Mounting Profile: With only a 2-5/8" mounting depth, this sub fits where larger traditional woofers physically cannot, making it ideal for trucks, sports cars, and tight-space builds.
Specifications:
- Size: 13.5-inch
- Impedance: 2 Ohms
- Cone Material: Mica-filled polypropylene
- Surround Material: Santoprene
- Basket Material: Cast alloy
- Grille: None included
- Free-Air Use: No
- Dual Voice Coil: No
- Sensitivity: 85.51 dB at 1W
- Frequency Response: 20 – 200 Hz
- Max RMS Power Handling: 600 W
- Peak Power Handling: 1200 W
- Top Mount Depth: 2 5/8 in
- Bottom Mount Depth: N/A
- Cutout Diameter: 12 7/16 in
- Frame Width: 14.189 in
- Frame Length: 14.189 in
- Vas: 64 liters
- Fs: 25.95 Hz
- Qts: 0.479
- Xmax: 11 mm
- Ideal Sealed Box Volume: 0.8 cu. ft
- UPC: 699440921824
- Weight: 10
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.
